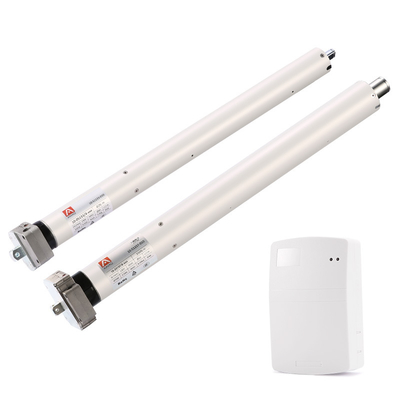

AAVAQ TM-59M 200N WiFi Smart null tubular motor for fast garage doors for roller shutter openers

10 Units
MOQ
$123.00(10 - 49 Units) $98.40(50 - 199 Units) $86.10(>=200 Units)
価格
AAVAQ TM-59M 200N WiFi Smart null tubular motor for fast garage doors for roller shutter openers
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 3 years
After-sale Service: Online technical support, Free spare parts, Return and Replacement
Project Solution Capability: total solution for projects, Others
Application: Villa
Design Style: Null
Model Number: TM-59M-200
Item: Tubular Motor
Keyword: WiFi Smart Roller Shutter
Usage: Rolling Door Motor
Rated Torque: 200Nm
Radio: KEELOQ Hopping Code, 433MHz
Maximum Distance: 80m
Remote Control: 2 Remotes Included in Box
Safety Protection: Infrared Photobeam Connection, Pneumatic Safety Strip
Low Voltage Protection: Yes
Set Choices of Accessories: Round / Octagonal
基本情報
Model Number: TM-59M-200
お支払配送条件
Packaging Details: LCL/FCL: - Motor Unit, Control Unit. two remote controls, Set of Crown, Adapter, Idler and complete accessories - all stacked on wodden pallets - app. 1000 sets per 20' Container
Supply Ability: 100000 Piece/Pieces per Month
製品の説明
Products Description
Technical Specifications
TM-59M-200
Maximum Door Weight (80mm / 106mm)
200kg/180kg
Maximum Door Width (80mm / 106mm)
6m/5m
Maximum Turns
18
Diameter
59mm
Rated Torque
200N.m
Rated Speed
5rpm
Rated Power
470W
Rated Current
2.04A
Nominal Input Voltage
220V AC±10%
Maximum Run Time
4min
Degree of Protection
IP44
Connect to APPLink Smartphone Controller
Yes
Operating Temperature
-20°C to +50°C
Radio
KEELOQ Hopping Code,433MHz
TX Capacity On-Board Receiver
Standard 2, Max. 49 Transmitter;
TX Included in Box
2 Transmitter (Remotes) Included
Maximum Distance
80m
Weight
11kg
